| Place of Origin: | Shanghai, China |
| Brand Name: | LONGWAY |
| Certification: | ISO9001 |
| Model Number: | LW1609201453 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | electrolytic capacitor paper,foam,carton |
| Payment Terms: | D/P, T/T, Western Union |
| Supply Ability: | 20000 Pieces per Month |
| Surface: | Optical Grade | Transmission: | Over 90% |
|---|---|---|---|
| Coating: | Available | Processing: | Polishing |
| Application: | Optics And Fiber Optics | OEM: | Available |

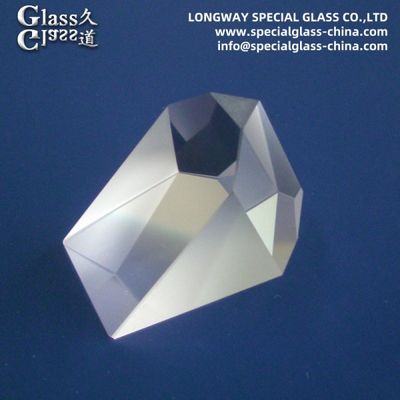

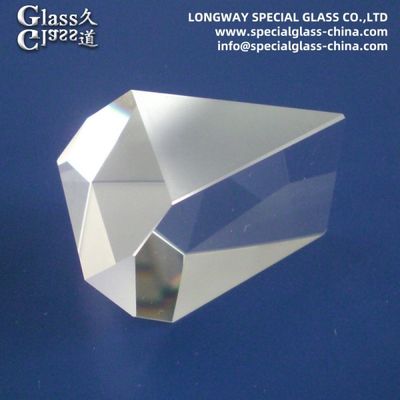

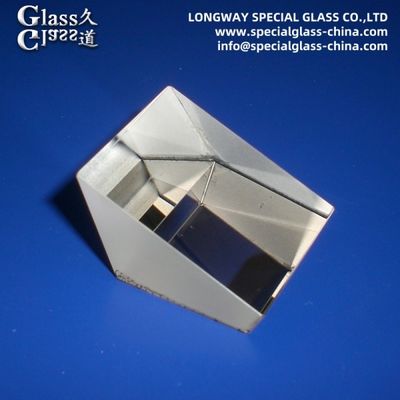

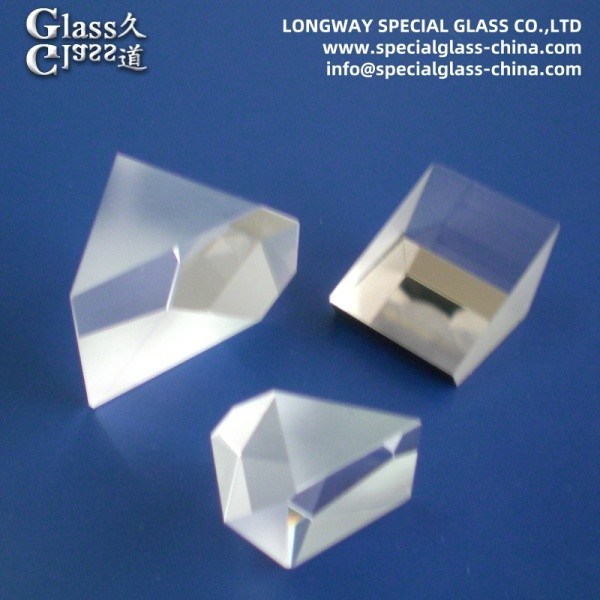

Bk7 Optical Glass Prism Lens For Fiber Optic Communication System
Material
Quality
Function
Application
The Bk7 Optical Glass Prism Lens is a high-quality component for fiber optic communication systems. Its durable material, precise manufacturing, and versatile function make it an essential part of modern optical technology.
| Material | Optical Glass,BK7, UV Fused Silica, quartz,SF11 |
| Dimension Tolerance | +0/-0.15 mm |
| Angle Tolerance | <5 Arc minutes |
| Cler Aperture | over 90% |
| Surface Quality | 80/50~10/5 scratch and dig |
| Transmission | above 90% |
| Flatness | <λ/4@632.8 nm |
| Chamfer | 0.1-0.5 mm x 45 degree |
| Coating | available |
| Usage | Laser system, optical system, photographic system |
![]()
![]()
![]()
